CG Cabcool 902 Dual 92mm Fan Cooling kit for Cabinet - Home Theaters

Pre-set Thermal Fan Switch 840556092216

Available in ,  Version

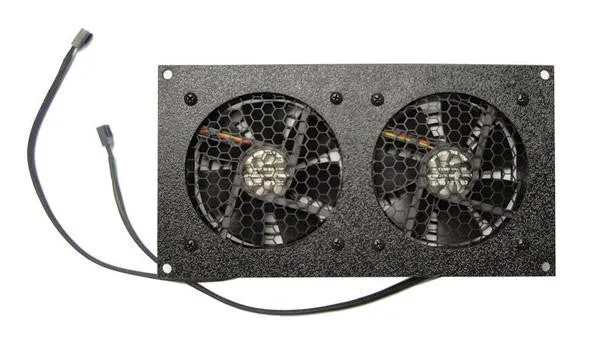

This is a complete thermostat dual fan cooling kit (120 x 225 x 38mm) that will quietly cool your cabinet or enclosure.

 display an additional $15.00/ea.

Can be mounted on any side of a cabinet, where room permits, by cutting a rectangular hole approximately 97 x 202mm. Insert completed cooler assembly in a hole and attach to the cabinet with appropriate screws.  Fans can be set to blow into or out of the cabinet depending on your needs.  If you need additional information contact .

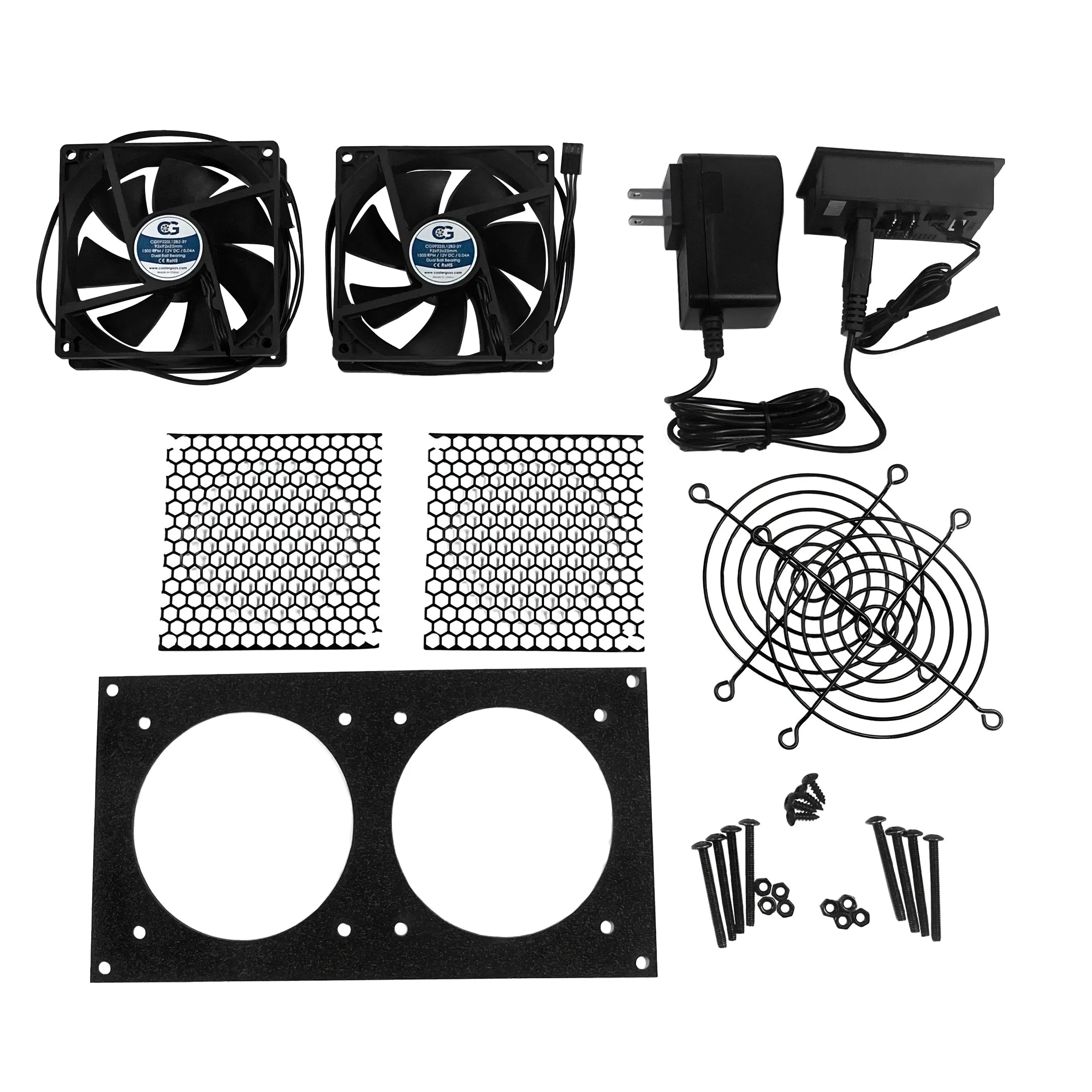

Cooling Unit includes the following:
(2)
(1)
(1)
(1)  Black Acrylic Fan bracket (120 x 225 x 4mm)
(2)
(2)
(8) Fan bolt and nuts to attach grill(s)
 Pack -
 (4) 1/2" black Cabinet screw(s)

All necessary screws, cables, and fasteners to complete the unit.

PRODUCT SPECIFICATIONS:
Completed Dimensions: 120 x 225 x 38mm
Cabinet Cutout size: 97 x 202mm

SPECIFICATIONS:
Model: CG09225L12B2-3Y
Dimensions: 92x92x25mm
Rated Voltage: 12 Volts
Input current: 1.08 Amp Max
Storage temperature: -40 to 70 C
Airflow: 61 CFM
Noise Level: 19 dBA
Corners: Open
Connector: 3 Pin w/ 12" Tail
Bearing Type: Dual ball bearing
Life Span: 67,000 hours

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
