Product Details
＋
Highlights

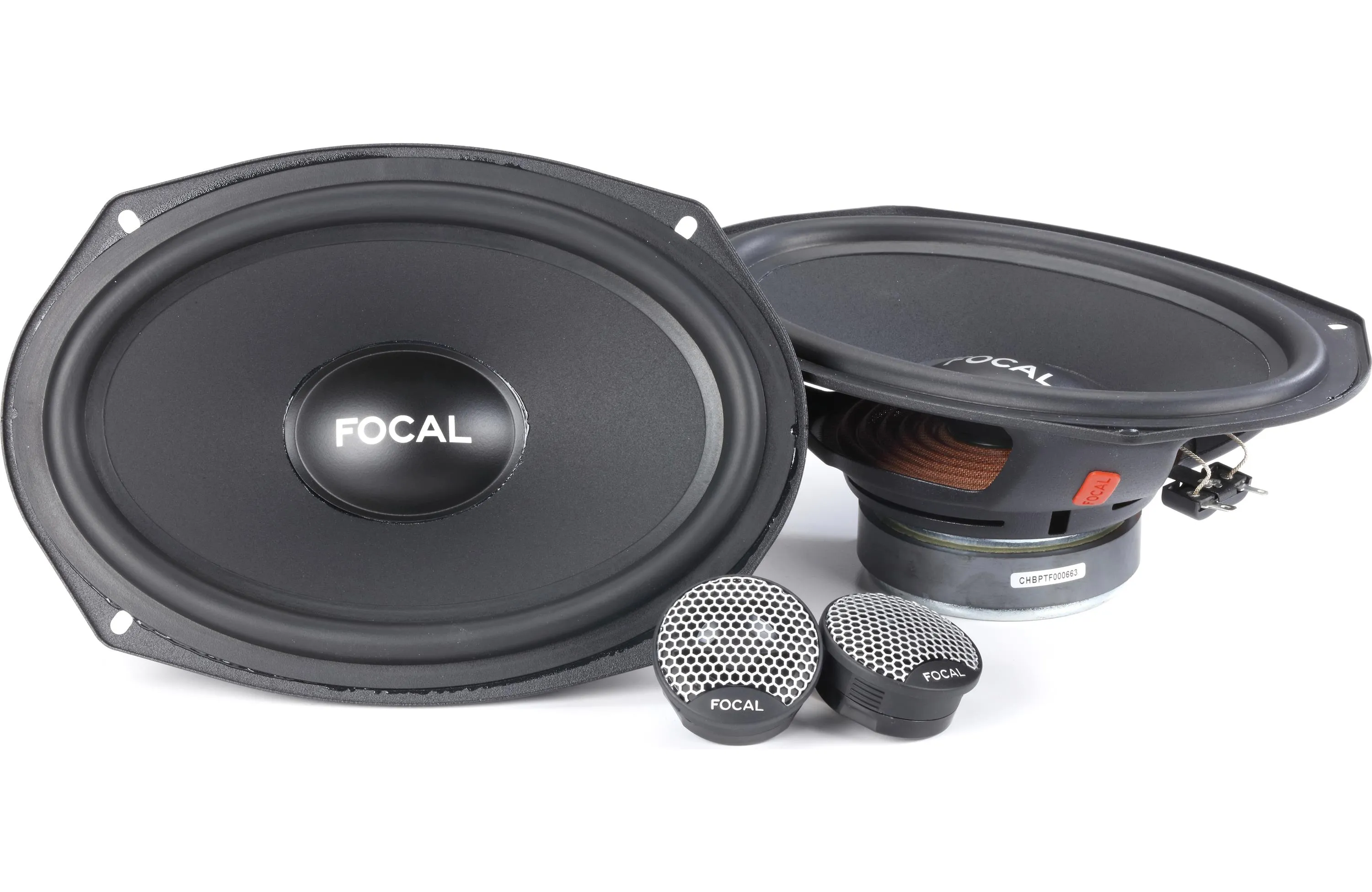

- Component speaker system includes two woofers and two tweeters with inline crossovers

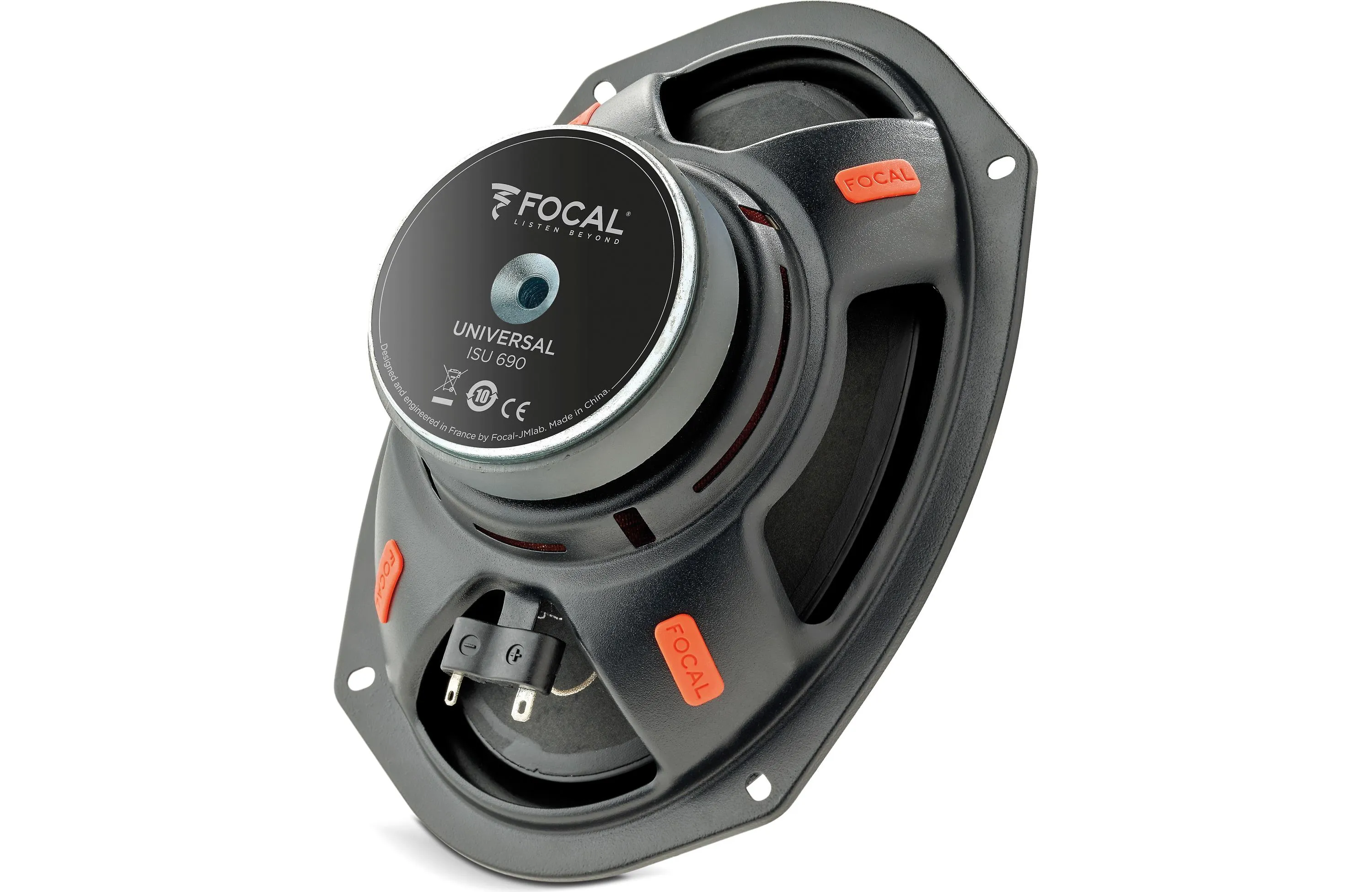

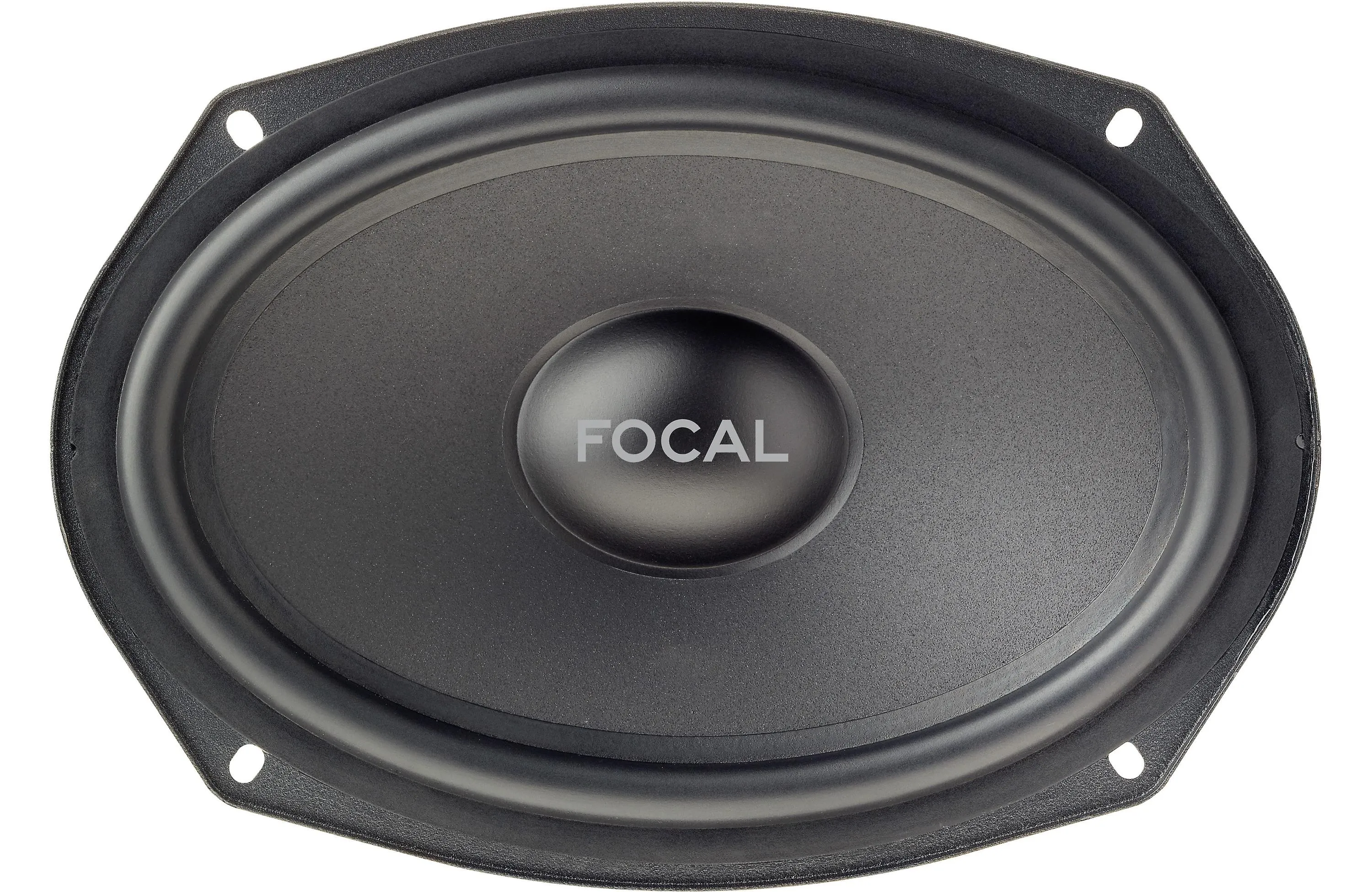

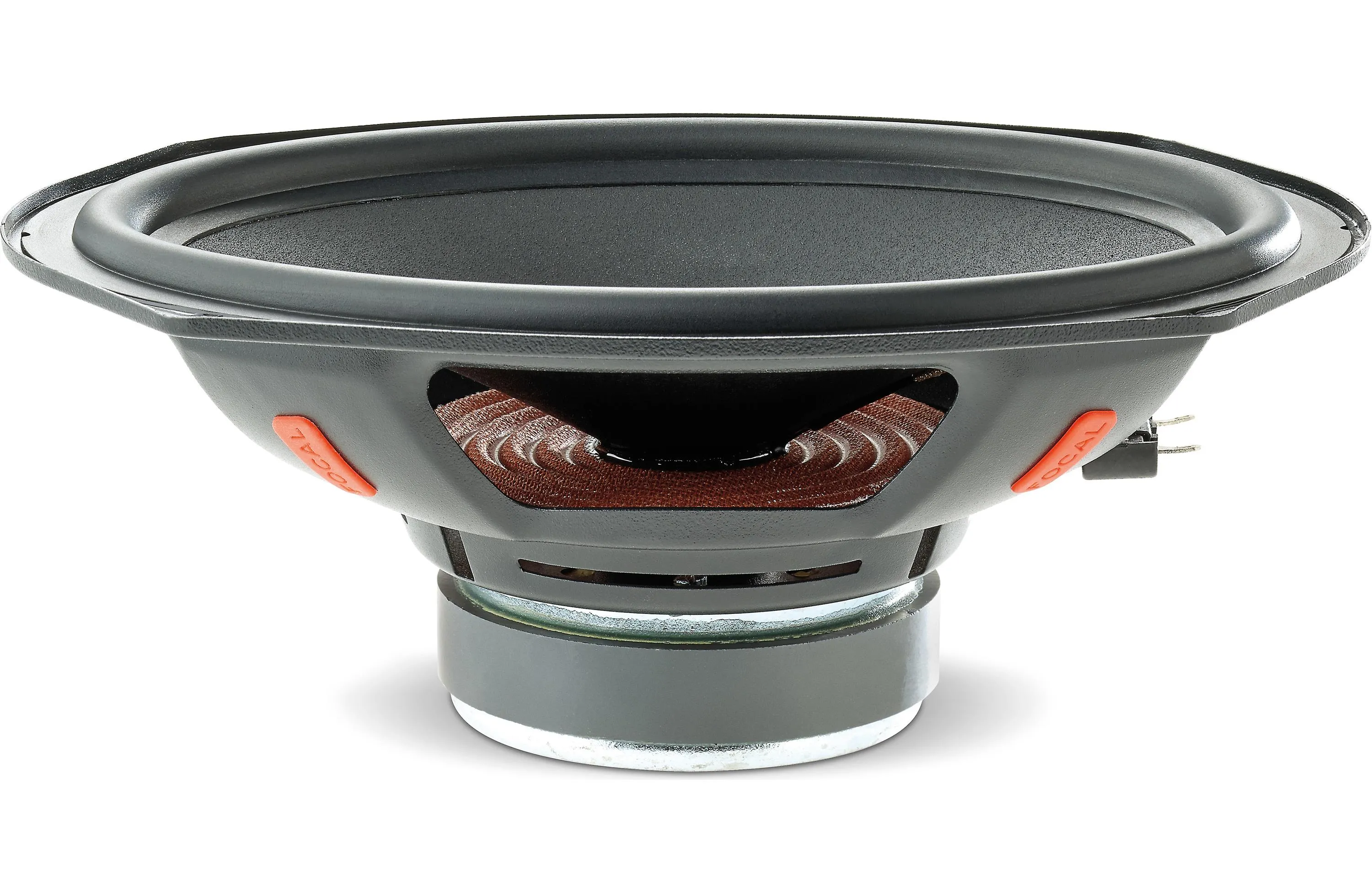

- 6"x9" polyglass woofer with butyl rubber surround

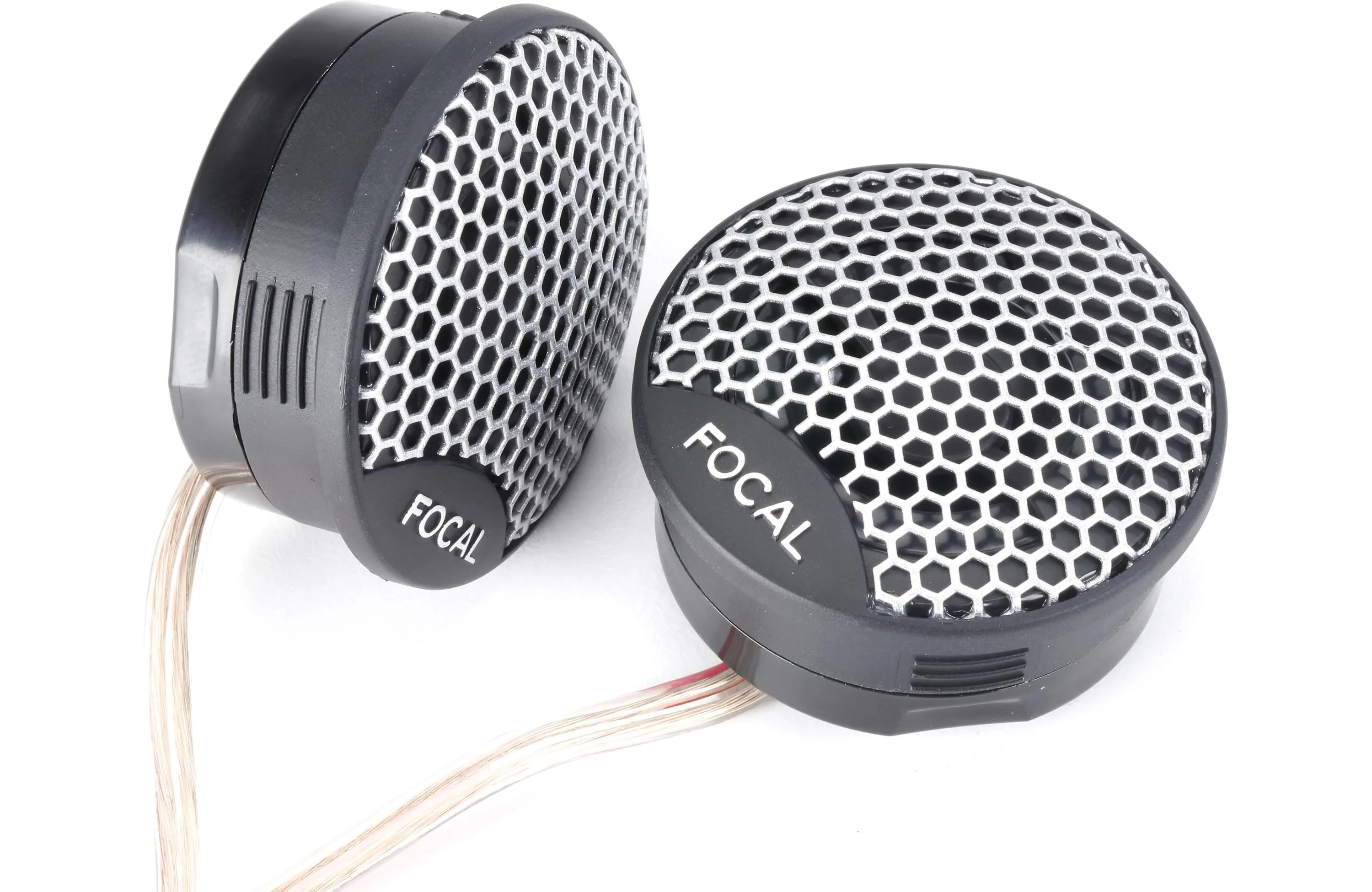

- Aluminum / Magnesium inverted dome tweeter with acoustic horn design

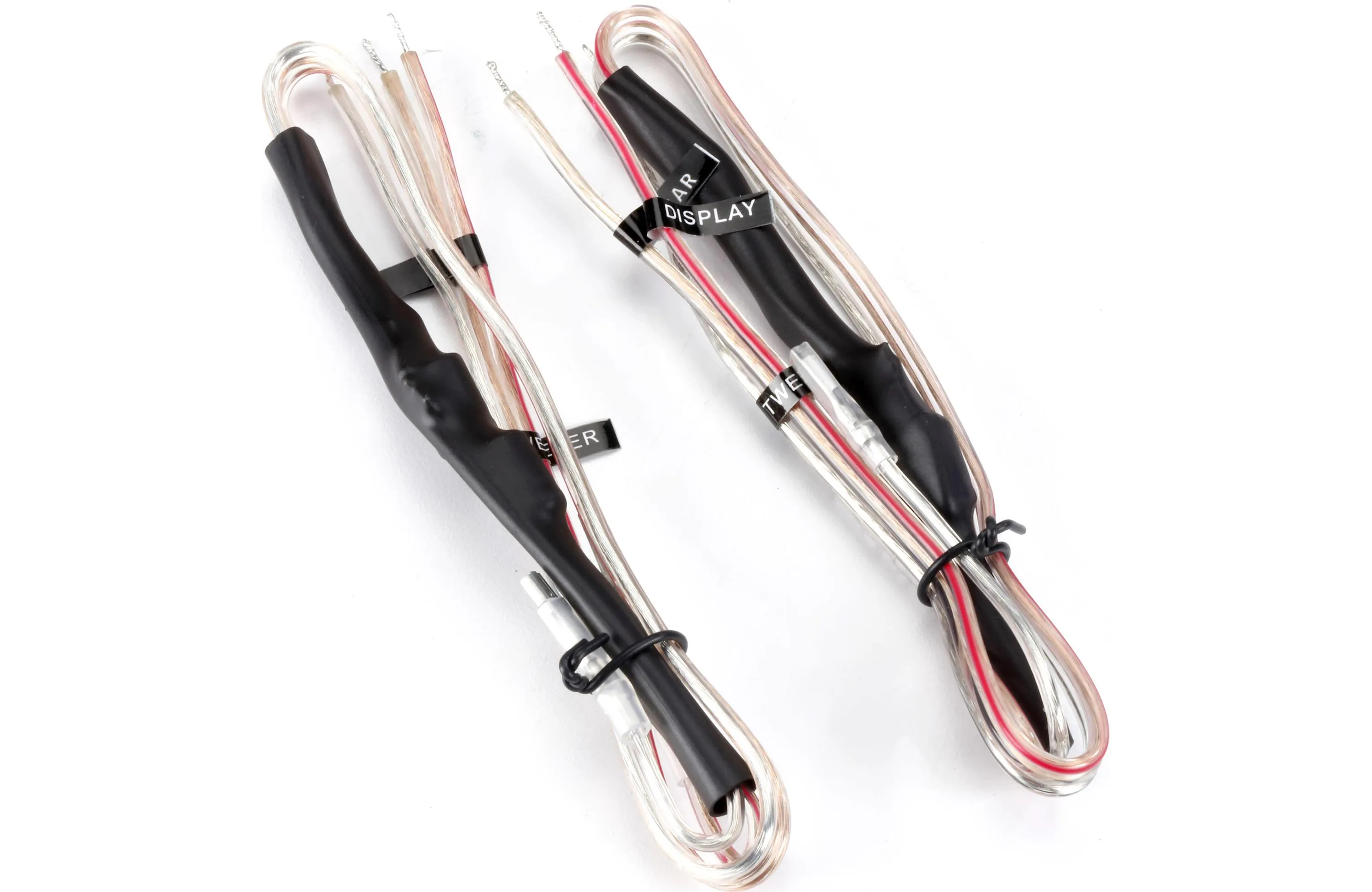

- Tweeter installation accessories included
- 4-ohm impedance
- Handles up to 80 watts RMS power range (160 watts peak)
- Frequency response: 55-21,000 Hz
- Sensitivity: 93.6 dB
- Woofer top-mount depth: 3-5/16"
- Grilles not included
- Warranty: 1 year
Features
Polyglass Cone: The woofer cone has a cellulose pulp base and is coated with a uniform deposit of hollow glass microballs. The addition of the Polyglass layer significantly increases the cone's rigidity without adding much weight. This combination takes advantage of the accuracy and neutrality of the hard outer surface, but maintains the superior damping characteristics of the cellulose pulp.
Surround: The butyl rubber surround is resistant to ultraviolet rays, temperature extremes, and humidity to add to the speaker's reliability and longevity.

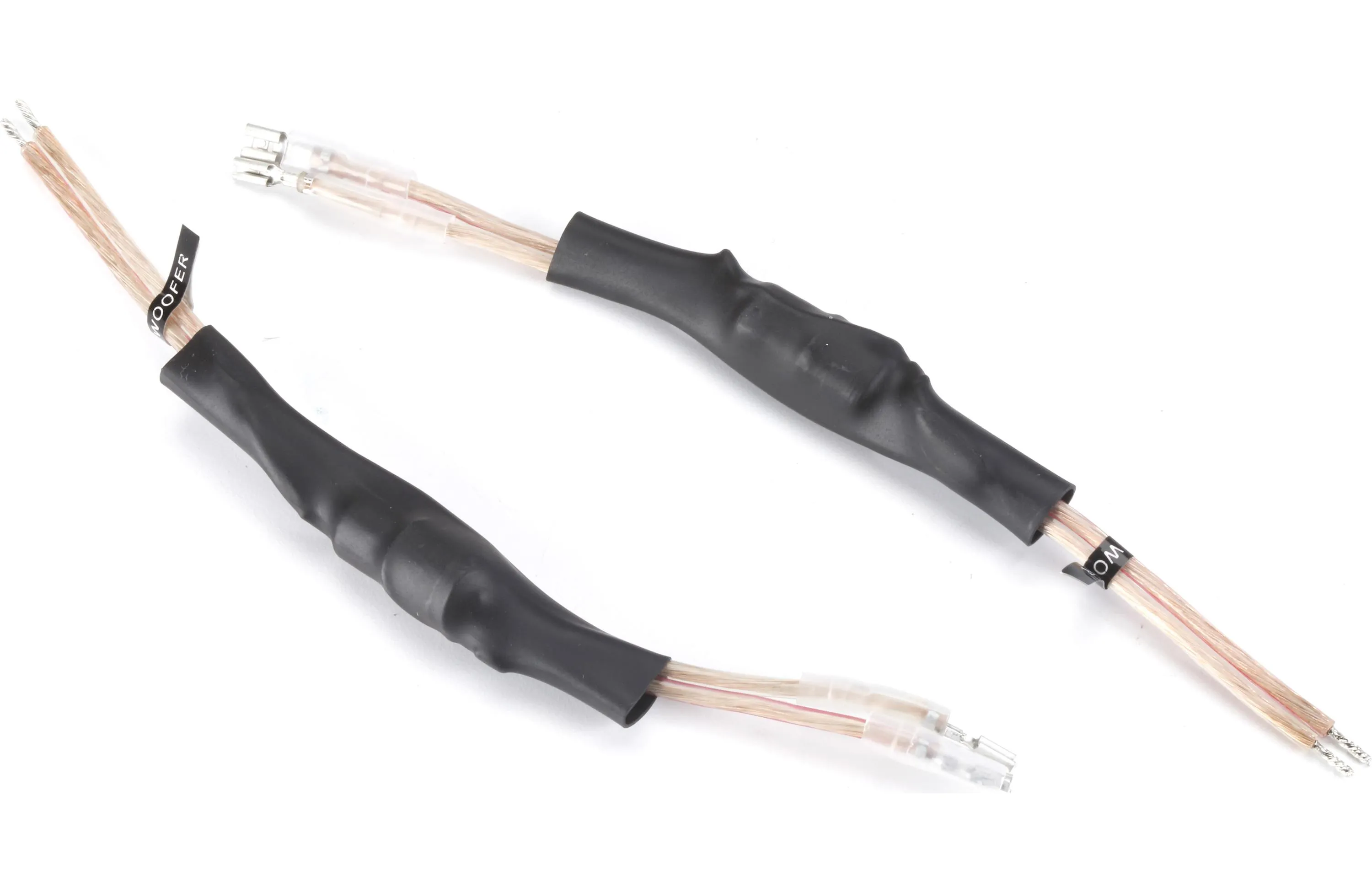

Woofer Crossovers: The included 7" woofer wires have integrated crossovers. The woofer ends of the wires have female quick-slides that easily connect to the woofer terminals.
| Speaker Size | 6x9" |
| Design | 2-Way |
| Tweeter Design | Inverted Dome |
| Impedance | 4 Ohms |
| Tweeter Composition | Aluminum / Magnesium |
| Woofer Composition | Polyglass |
| Woofer Surround | Butyl Rubber |
Specifications
| Sensitivity at 2.83 volts | 93.6 |
| Frequency Response | 55 - 21k Hz |
| Maximum RMS Wattage | 80 |
| Peak Power Handling (Watts) | 160 |
| Top-mount Depth | 3 ⁵⁄₁₆" |
| Bottom-mount Depth | 3 ¾" |
| Mounting Height | 0.266" |
