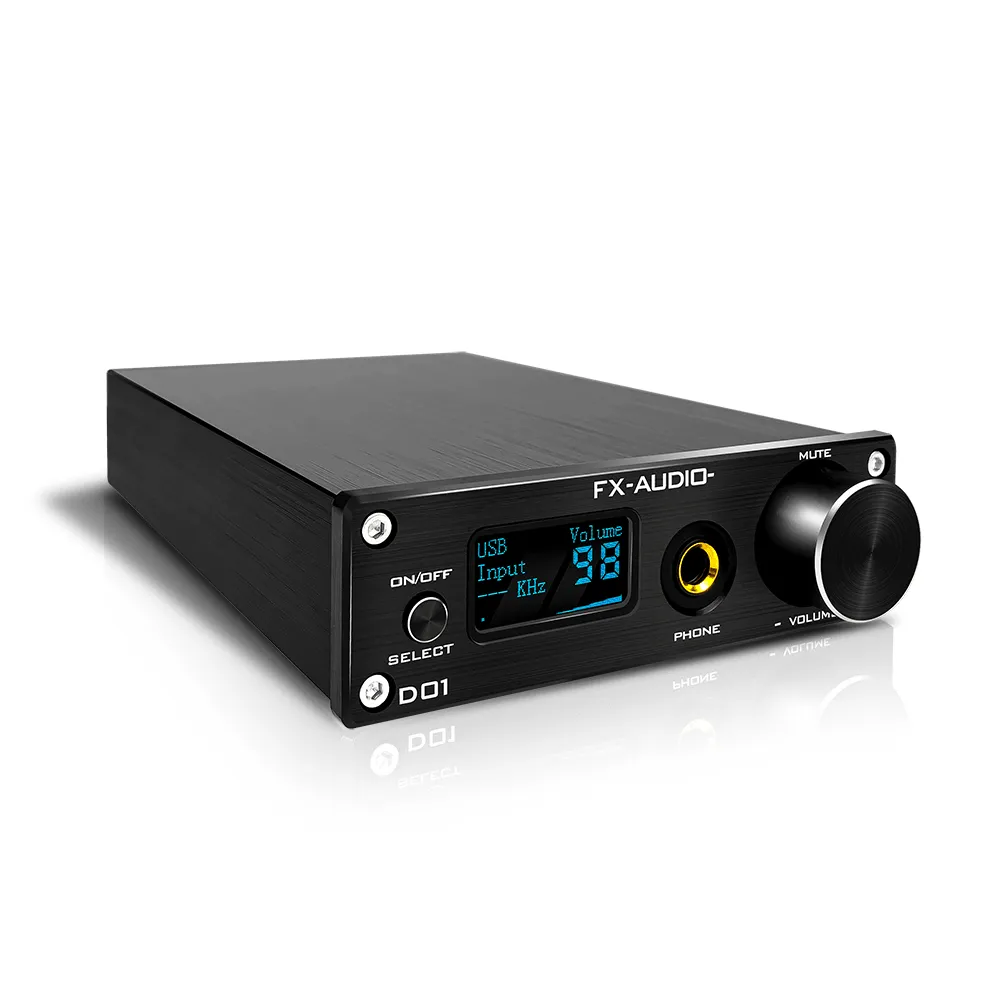

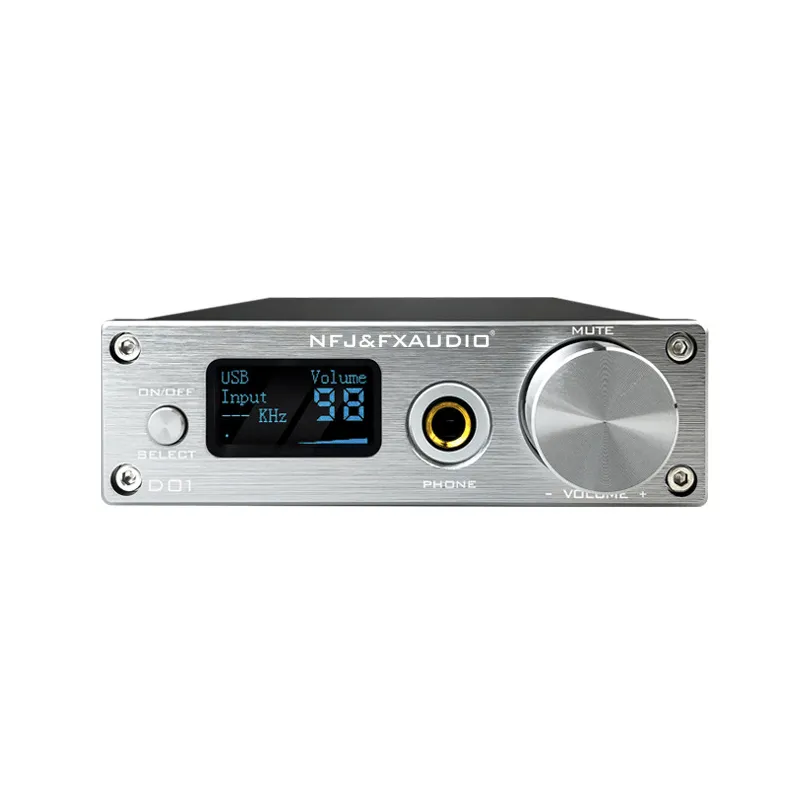

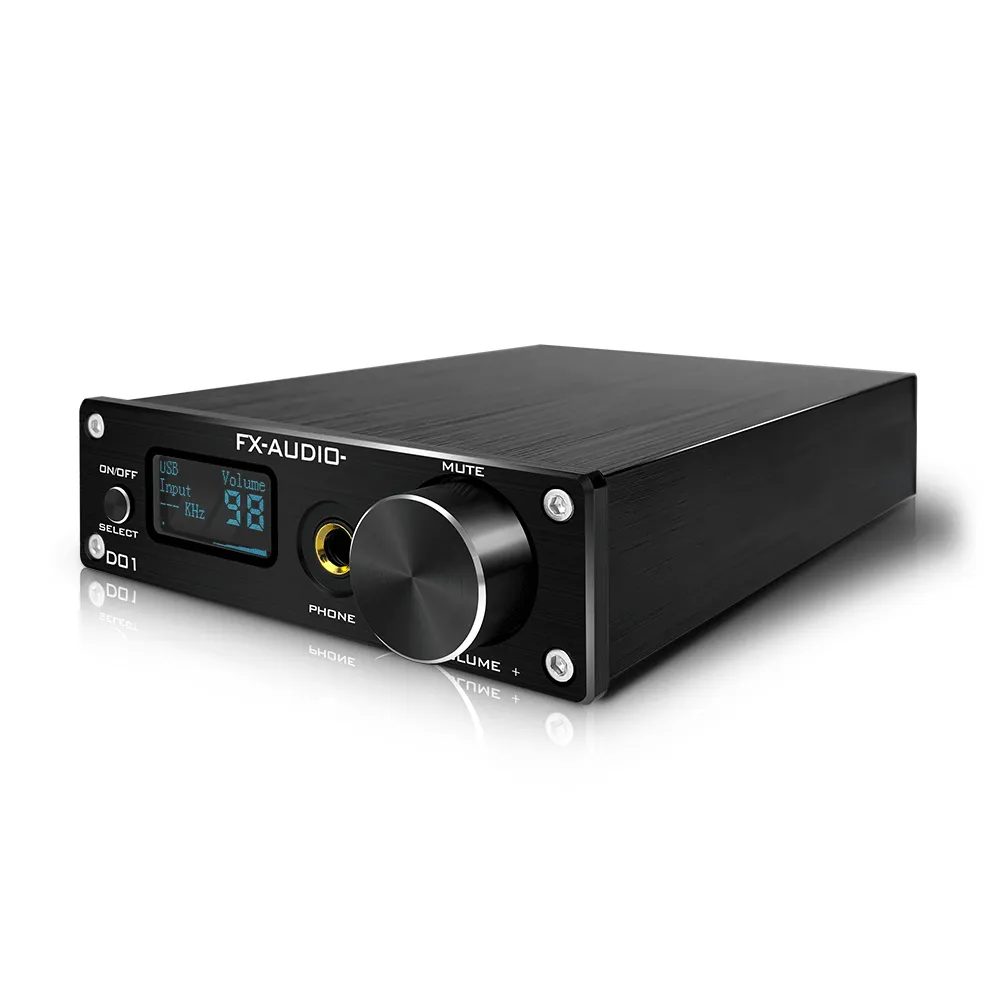

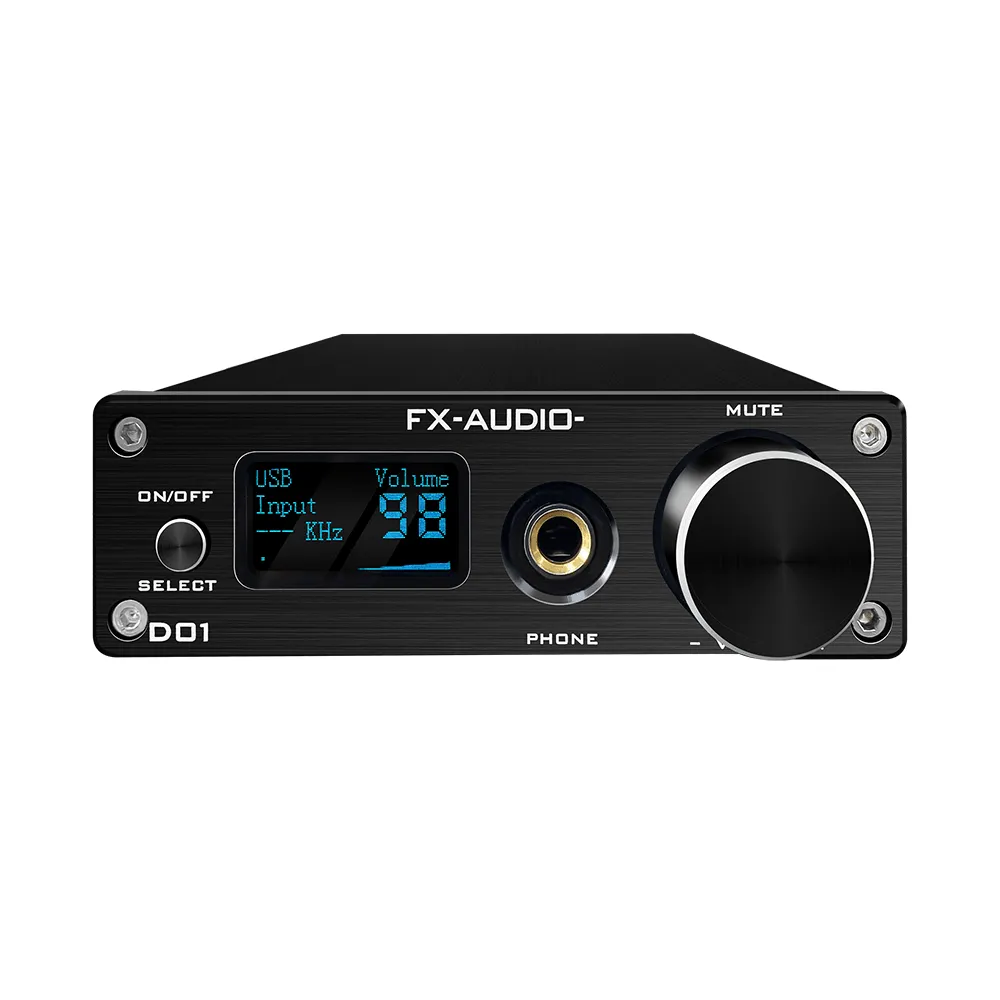

Name: FX-AUDIO D01 Bluetooth 5.0 DAC Headphone Amplifier Hifi DSD512 Hard Decoder ES9038Q2M TPA6120A2DWPR Power Amp
SKU: 2337160

Product Details ＋

FX-AUDIO D01 Bluetooth 5.0 DAC Headphone Amplifier Hifi DSD512 Hard Decoder ES9038Q2M TPA6120A2DWPR Power Amp

Specification:

Chipset: STM32 XMOS XU208 ES9038Q2M TPA6120A2DWPR LME49720NA CSR8675

Line Out RMS Level: 2Vrms@0dBFS

THD N: <0.002% @1KHz

SNR: 115dB @1kHz

Dynamic Range: 115dB @1kHz

Sampling Rate: USB 16Bit-32Bit /44.1K-768K, DSD64/ DSD128/ DSD256/ DSD512

Coaxial /Optical: 16Bit-24Bit/ 44.1kHz-192kHz

Bluetooth: 16Bit/24Bit 44.1kHz-96kHz

Headphone Power Output: 400mW x 2@32Ω THD N<1%, 90mW x 2@300Ω THD N<1%

Headphone THD N: <0.004% @1kHz

Headphone SNR: >110dB @1kHz

Headphone Frequency Response: ( 0, -0.5dB) (20Hz～20KHz)

Headphone Impedance: 16Ω-300Ω

Audio Input: PC-USB, Optical, Coaxial, Bluetooth

Audio Output: Line Out, 6.35mm Headphone

DC Power Supply: 12V 1A

Unit Size: 11.4 x 17.8 x 3.3 cm

Unit Weight: 0.47kg

Features:

Using ES9038Q2M decoder chip and XMOS XU208 USB chip can support 16-32Bit/ 44.1kHz-786kHz. The hard DSD supports up to 512. The amp chip TPA6120A2DWPR

Uses Bluetooth 5.0 CSR8675 chip with AAC/SBC/APTX LL/APTX HD/LDAC. Please install the Bluetooth antenna before pairing Bluetooth. Please pair "FX-AUDIO-D01" in the Bluetooth of your mobile phone to play music after pairing is successful

It has Bluetooth, optical, coaxial, USB inputs. Can be connected to CD/DVD/BD players, computers, mobile phones, tablets and other audio source devices. The output has 2.0 channel speaker output, which can be connected to left and right channel speakers or power amplifiers. There is also a 6.35mm amp output interface, which can be connected to 6.35mm headphones or 3.5mm headphones. We provide a 6.35 to 3.5 headphone converter

Package Included:

1 x FX-AUDIO D01 Amplifier

1 x 12V 1A Power Supply
